The elements consist of an 8mm dia. stainless steel tube housing a nickel/chrome resistance wire, which is insulated using compacted magnesium oxide powder.

The magnesium oxide insulation takes up moisture over time, so the ends are sealed with silicone rubber and a ceramic end insulator.

The elements can be supplied straight or formed into the shape/size that you require.

Formed elements have a ¼” BSP brass crimp fitting on the ends to allow fixing into your metalwork, alternatively we can supply ¼” BSP compression fittings. There are 4BA threaded terminations at each end.

See list of stocked sheathed elements

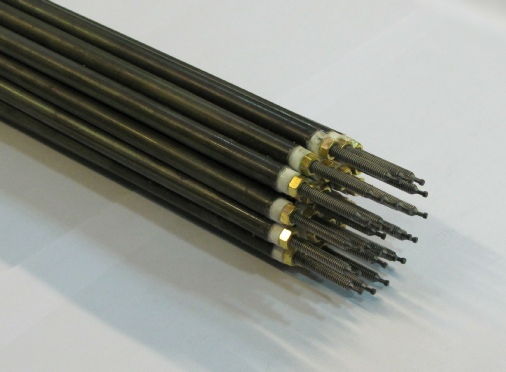

Sheathed Elements

Sheathed Element formed to fit Circular Duct
